Product Description

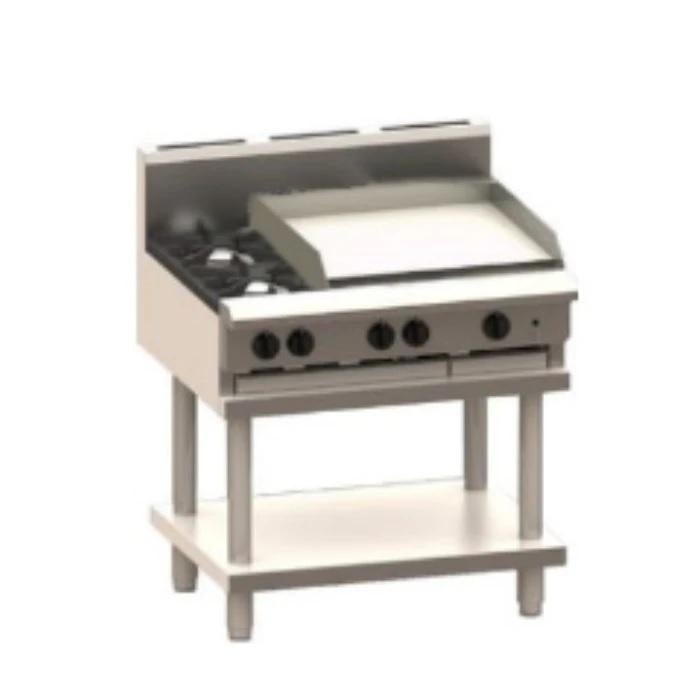

CS-2B6P 2 Burner 600mm Griddle Cooktop 92mj NAT/92mj LPG
Open Burners
• Nickel plated cast iron 28 mj dual-flame ring burners
• Flame failure device standard (pilots optional extra)
• Variable flame control valve with low flame setting
• Heavy duty cast iron trivets
• Pressed 0.7mm 304 stainless steel spillage bowls
Griddle/Hotplate
• 18 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 21mm thick mild steel griddle plate
• Top weld sealed hotplate sections
• CS-2B6P plate: 590mm x 540mm; 0.32m2 cooking area
• CS-4B3P plate: 290mm x 540mm; 0.16m2 cooking area
• 2mm 304 stainless steel splash guards
Chargrill/Barbecue
• 33 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• Two piece burner with cast-iron heat distributing hood
• Optional ceramic rocks for even heat and smokiness
• Optional cast iron ceramic rock tray
• CS-4B3C bbq: 280mm x 520mm; 0.15cm2 cooking area
• 2mm 304 stainless steel splash guards
Overall Construction
• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range
• Secondary catchment tray 0.9mm stainless steel
Dimensions
• 900mm x 800mm x 1100mm H
• 900mm x 800mm x 560mm H (benchtop)
• Working height 900mm
• Weight 118kg
• Packed dimensions 940mm x 860mm x 1260mm H
• Packed weight 143kg
Connections
• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Benchtop model gas connection: 60mm from bottom
• Supplied with gas regulator (specify Nat or LP on order)
Cleaning & Servicing
• Removable burner hoods and spillage bowls
• Secondary undertray to catch any additonal waste
• Easy access to all parts & components from front
