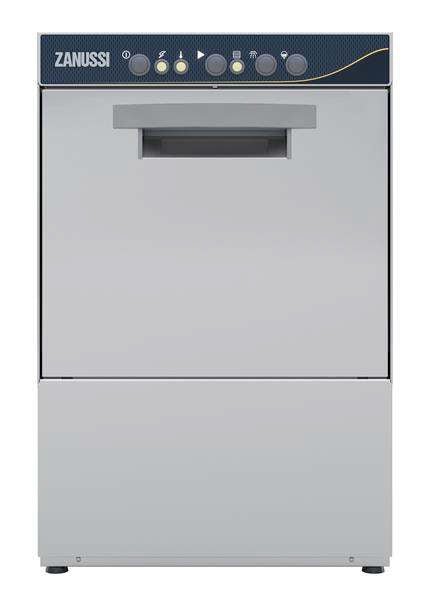

Zanussi Glasswasher with drain pump, detergent & rinse aid dispenser 402271

Glasswasher (small), with single skin, multi-rack dimensions, built-in drain pump, detergent and rinse aid dispenser, 2 cycles, 40 basket/h.

Unit shall be Glasswasher type hot water rinsing for multi-rack dimensions.
Electrical charasteristics to be 230 single phase operation with two washing cycles
of 90/ 120 seconds. Rinse temperature and pressure guaranteed by built in pressure
boiler. Washing performance is ensured by a powerful wash pump, revolving
washing spray arms. Double skinned counter-balance door. Provided with a double
rack support allowing the use of 3 types of racks: the first rail support
accommodates standard 400x400 mm racks; the second can accommodate either
14"x14" (365x365 mm) or 17"x14" (435x365 mm) racks, both of which stop in the
middle of the washing chamber. 304 stainless steel construction to include door,
frame, wash tank. The unit shall include drain pump, detergent and rinse aid
dispenser pump and be equipped with electric cable.

Main Features
· Deep drawn pressed wash tank with fully rounded corners,
sloped towards the drain to prevent dirt build up provides
fast drainage in only a few minutes. Pressed wash tank with
no welded points offer a guaranteed water tight solution.
· Maximum capacity of 40 racks per hour.
· Equipped with single phase electrical cable for easy and fast
installation.
· Easy service access to main components without moving
the unit.
· Built-in rinse aid and detergent dispenser with automatic
initial and continuous cycle loading for perfect result while
minimizing service and maintenance needs.
· Equipped with drain pump for easy and quick installation
without opening the machine.
· 90/120 seconds cycle.
· Built-in pressure boiler designed to raise incoming water to
a guaranteed minimum temperature of 82°C for sanitizing
rinse. No external boiler is required.
· Simple operation control panel.
· Washing system endowed with rotating washing arms, high
powered wash pump and large capacity wash tank for
professional washing.
· Provided with a double rack support allowing the use of 3
types of racks: the first rail support accommodates standard
400x400 mm racks; the second can accommodate either 14
"x14" (365x365 mm) or 17"x14" (435x365 mm) racks, both
of which stop in the middle of the washing chamber.
Construction
· Completely closed on the back by a cover plate.
· Internal components (arms and filter) are easy extractable.
· Insulated double skin door construction preserves heat
inside the tank to lower energy consumption and the noise.
Counter-balance mechanism minimizes impact when
opening and closing.
· Unit to feature rinse aid and detergent dispenser pumps.
· Finished in top quality materials to ensure durability.
· Robust structure thanks to stainless steel construction.

Electric
Supply voltage:
402271 (ZSGWM) 220/240 V/1 ph/50 Hz
Default Installed Power: 2.89 kW
Boiler heating elements: 2.7 kW
Tank heating elements: 2.4 kW
Wash pump size: 0.2 kW
Water:
Pressure, bar min/max: 0-5 bar
Water supply temperature*: 10-50 °C
Drain line size:
Washing tank capacity (lt): 12
Water consumption per cycle (lt): 2
Boiler Capacity (lt): 3
Incoming water line size: 3/4"
Key Information:
Baskets per hour*: 40
Working cycles time (sec.): 90
Wash temperature: 60°C
Cell dimensions - width: 400 mm
Cell dimensions - depth: 400 mm
Cell dimensions - height: 290 mm
Rinse temperature: 85 °C
External dimensions, Width: 455 mm
External dimensions, Height: 700 mm
External dimensions, Depth: 550 mm
Net weight: 38 kg
Shipping weight: 42 kg
Shipping height: 850 mm
Shipping width: 630 mm
Shipping depth: 540 mm
Shipping volume: 0.29 m³
Noise level:
